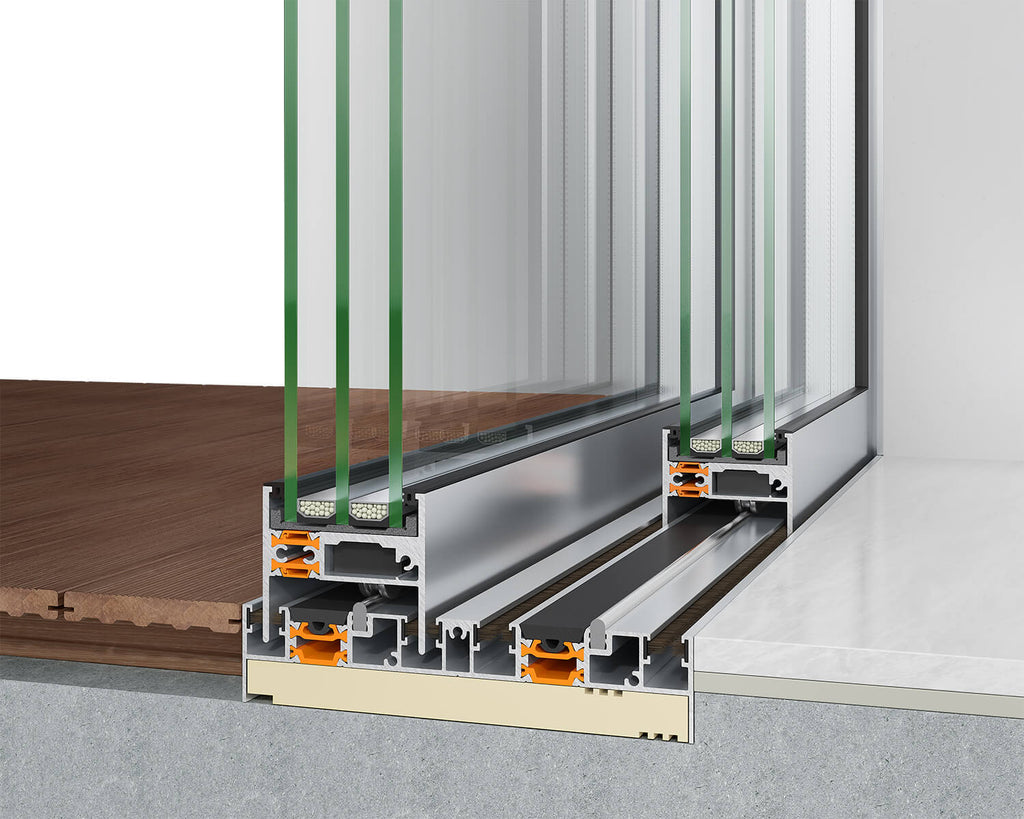

Alumil S650 PHOS


Thermally insulated, sliding door system with zero face width.

A Less Frame system offering high functionality, performance and minimal architectural design. The aluminum profiles are totally concealed in the wall so as to maximize natural lighting.



  • Frame profile depth: Double guide rail 164 mm Triple guide rail 250 mm
  • Frame face width: Zero visible aluminium face width - 0 mm
  • Maximum glass thickness: 46mm
  • Sheet profile depth: 61.9 mm
  • Sheet face width: 25 mm at the hooks

  • Sash weight up to 300 kg
  • Profiles have straight form
  • Manufacturing capability of up to 3 meters high


  • Soundproofing up to Rw=46 dB in accordance with DIN EN ISO 140-3
  • Burglar resistance up to RC2
  • Air permeability in accordance with DIN EN 12207 Class: 4
  • Water permeability in accordance with DIN EN 12208 Class: 9Α
  • Wind pressure resistance in accordance with EN 12210: Class: C3/B3
